Product Overview

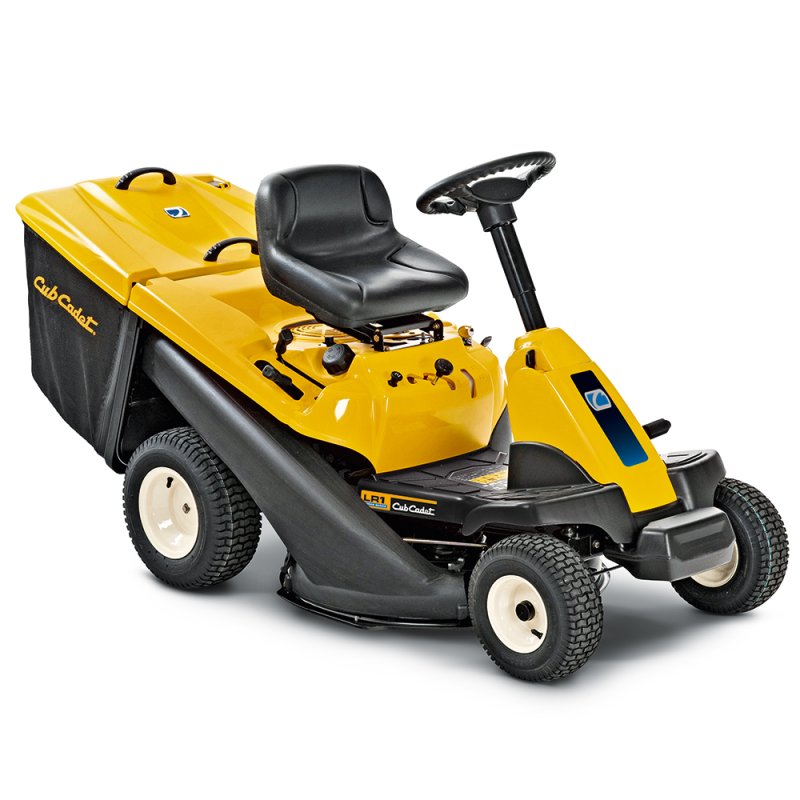

The LR1 MR76 is a comfortable Mini-Rider with fantastic features like the space-saving design, great agility and outstanding performance. Thanks to the space-saving design, these models are almost as compact as a conventional walk behind mower in terms of garage space. This compact Mini-Rider with electric start is equipped with a powerful Cub Cadet engine and a 6 speed transmatic transmission allowing for shift-on-the-go speed control. The 3-in-1 functionality gives you the option to collect, discharge or mulch your grass clippings..
Technical Specifications
Engine
- Model: LR1 MR76
- Engine: Cub Cadet OHV
- Displacement: 382 cm³
- Rated Power: 7.4 kW / 2,700 min⁻¹
- Cylinders: Single
- Fuel Tank Capacity: 4.9 L
- Lubrication: Fully pressurised automotive-style oil pump with spin-on oil filter
Drive System
- Transmission: Transmatic
- Air Speed (Max): 6 (forward/reverse), shift-on-the-go
- Control: Foot pedal with manual pre-selection lever
Cutting System
- Mowing Area: 2,500 m²/h
- Cutting Width: 76 cm (30")
- Cutting Height Range: 38–95 mm
- Cutting Options: 3-in-1 option
- Number of Blades: 1
- Deck Engagement: Manual lever control
- Deck Height Positions: 5 positions
- Wash Nozzle / Mulching Plug: Standard / Optional
Discharge System
- Grass Bag Capacity: 200 L (Standard)
- Bag Lever / Hardtop: 2 grips / Plastic
- Bag Full Indicator / Grass Deflector: Standard / Optional
Frame & Wheels
- Front Axle: Steel
- Front Bumper: Standard
- Turning Radius: 46 cm (18")
- Wheels (Front/Rear): 13 x 5 / 16 x 6.5 inches
- Wheel Bearings: Sleeve bearings
- Frame: Easy entry frame
Electrical
- Battery: 12V wet battery, 115 CCA
- Headlights: –
Comfort
- Seat Type: Comfort seat
- Seat Adjustment: Tool-less
- Steering Wheel: Standard
- Mow in Reverse: Standard
- Battery Charger: Optional (196-967-678)
Dimensions & Noise
- Noise Level: 88 / 98 / 100 dB
- Vibration (Body) / K-Factor: 1.0 / 0.5 m/s²
- Vibration (Hand-Arm) / K-Factor: 5.0 / 1.5 m/s²
- Dimensions (L × W × H): 225 × 86 × 112 cm
- Net Weight: 144 kg
Details
| Length |
225 cm |
| Width |
86 cm |
| Height |
112 cm |
| Weight2 |
144 |
| Brand |
Cub Cadet |
| Watt |
382 |
| Barcode |
4008423892284 |
| Cutting Height |
38-95 |
