Product Overview

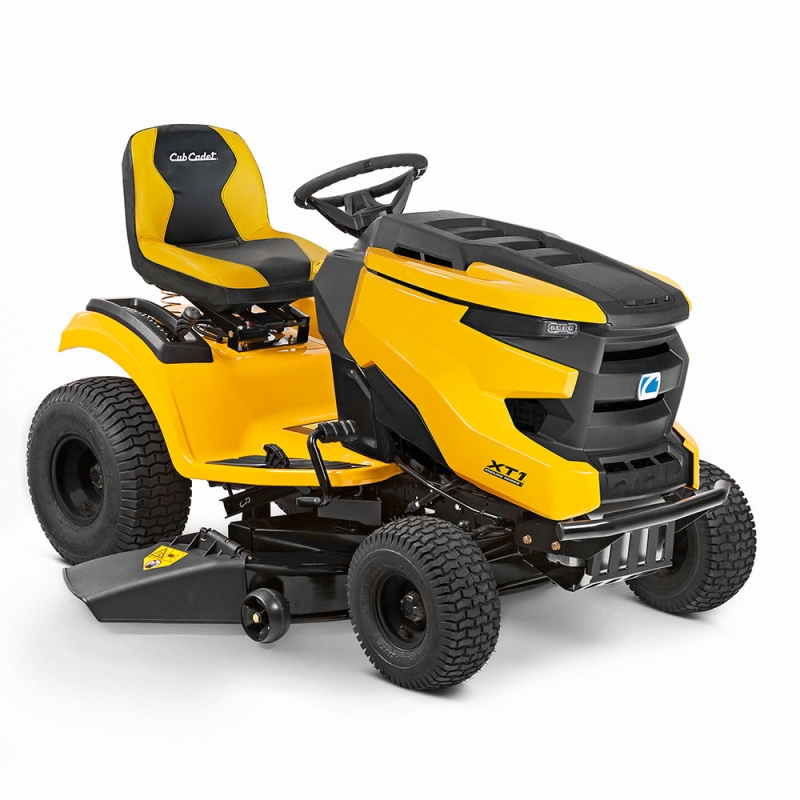

The XT1 OS107 garden tractor has a 107cm / 42” cutting width delivering a perfect cut, done in the quickest time. Easy to use and quick to adjust, setting the height from one of the 12 deck height settings is done with the simple movement of a lever and with a wide height range of 25mm – 100mm to choose from, the enjoyment can begin. The XT1 OS107 also features built-in soft touch cruise control, making mowing large areas an easy and relaxing activity.
Technical Specifications
Engine
- Model: XT1 OS107
- Engine: Cub Cadet
- Displacement: 547 cm³
- Rated Power: 6.6 kW / 2,250 min⁻¹
- Cylinders: Single
- Fuel Tank Capacity: 11.4 L
Drive System
- Transmission: Hydrostatic
- Air Speed (Max): Stepless (forward/reverse)
- Control: Foot pedal control
- Cruise Control: Standard
Cutting System
- Mowing Area: 8,000 m²/h
- Cutting Width: 107 cm (42")
- Cutting Height: 25–100 mm
- Number of Blades: 2
- Deck Engagement: Electric PTO
- Deck Height Positions: 12 positions
- Deck Wheels: 2 ball deck wheels
- Wash Nozzle / Mulching Plug: Standard / Standard
Discharge System
- Grass Bag Capacity: Optional 200 L
- Accessory No.: Optional (19A30030100)
- Bag Lever / Hardtop: – / –
- Bag Full Indicator / Grass Deflector: – / Standard
Frame & Wheels
- Front Axle: Heavy-duty cast-iron
- Front Bumper: Standard
- Turning Radius: Tight turn 38 cm
- Wheels (Front/Rear): 15 x 6 / 20 x 8
- Wheel Bearings: Sleeve bearings
- Frame: Robotically-welded
Electrical
Comfort
- Seat Type: Cut & Sew, high back rest
- Seat Adjustment: Lever, angled, 10 slide
- Steering Wheel: Ergonomic with gentle touch
- Tool Box / Cup Holder: Standard / Standard
- 12V Plug: –
- Mow in Reverse: Standard
- Battery Charger: –
Dimensions & Noise
- Noise Levels: 88 / 98 / 100 dB
- Vibration (Body) / K-Factor: 1.0 / 0.5 m/s²
- Vibration (Hand-Arm) / K-Factor: 5.0 / 1.5 m/s²
- Dimensions (L × W × H): 175 × 134 × 110 cm
- Net Weight: 195 kg
Details
| Length |
175 cm |
| Width |
134 / 116 cm |
| Height |
110 cm |
| Weight2 |
195 |
| Brand |
Cub Cadet |
| Watt |
547 |
| Barcode |
4008423872248 |
| Cutting Height |
25-100 |
