Product Overview

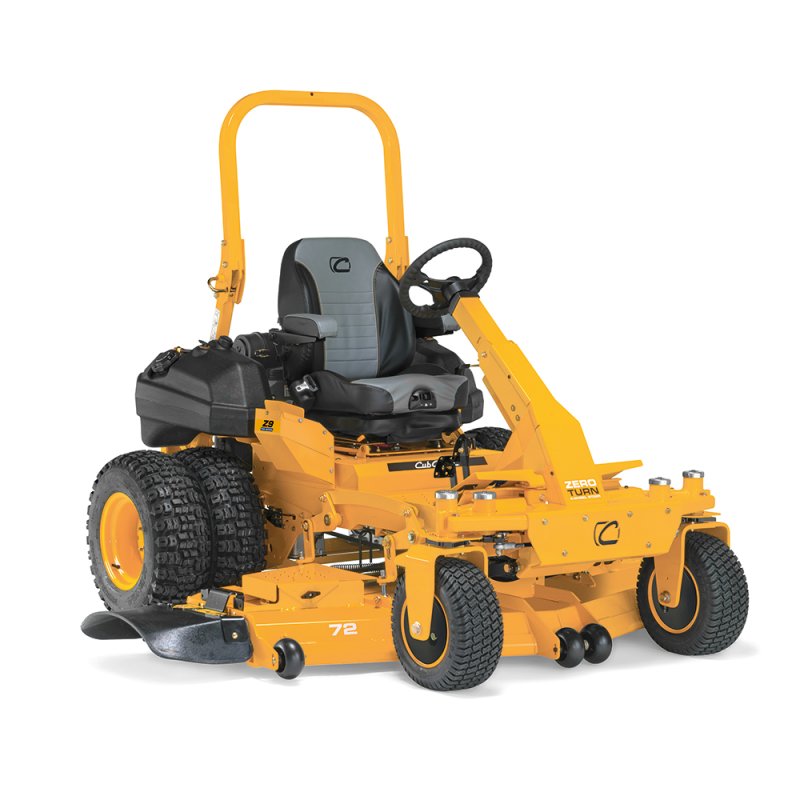

The new Z-Turn Z9 183id is a commercial zero-turn mower with extremely wide double tires – developed to effortlessly tackle even the steepest slopes of up to 25° (46 %). In addition, it has an extremely robust and multi-reinforced steel cutting deck, outstanding mowing performance and air-cushioned seating comfort. This top-of-the-line zero turn is ideal for commercial users and owners of large properties with challenging terrain.
Technical Specifications
Engine
- Model: Z9 183id
- Engine: Kawasaki FX1000V EFI
- Engine Displacement: 999 cm³
- Rated Power: - / 2,600 min⁻¹
- Cylinders: V-TWIN dual cylinder
- Fuel Tank Capacity: 2 x 34 L, with fuel indicator
- Lubrication: Pressure oil lubrication
Drive System
- Drive: Dual Hydrostatic
- Transmission: Parker HTG 16 cc
- Speed: 19.5 km/h (drive) / 10.0 km/h (reverse)
- Control: Dual foot pedal control
- Cruise Control: –
Cutting System
- Mowing Area: 18,000 m²/h
- Cutting Width: 183 cm (72")
- Cutting Height: 26–127 mm
- Cutting Options: 2-in-1
- Number of Blades: 3
- Deck Engagement: Electric PTO
- Cutting Height Adjustment: 17 positions
- Deck Wheels: 4 + 2 Nose + 1 deck rear rollers
- Mulch Kit: Standard
Discharge System
- Grass Bag Capacity: Side discharge
- Grass Deflector: Standard
Frame
- Front Bumper / Rear Bumper: – / Standard
- Turning Radius: 0 cm
- Wheels (Front / Rear): 16 x 6.5 / 24 x 12 inch
- Wheel Bearings: n.a.
Electrical
- Battery: 12 V / 230 CCA
- Headlights: –
- Hourmeter / Serviceminder: Standard / Standard
- Safety Systems: Rollover bar
Comfort
- Seat Type: High back with armrests, individually adjustable
- Seat Adjustment: Quick adjuster lever
- Steering Wheel: Soft-Grip
- Tool Box: Standard
- Mow in Reverse: Standard
- Battery Charger: –
Dimensions & Noise
- Noise Values (dB): 93 / 103 / 105
- Vibration Value Body (K-factor): 1 / 0.5 m/s²
- Vibration Value Hand-Arm (K-factor): 5 / 1.5 m/s²
- Dimensions (L × W × H): 226 / 185 / 131 cm
- Weight Net: 840 kg
Details
| Length |
226 cm |
| Width |
185 cm |
| Height |
131 cm |
| Weight2 |
840 |
| Brand |
Cub Cadet |
| Watt |
999 |
| Barcode |
4008423917482 |
| Cutting Height |
26-127 |
